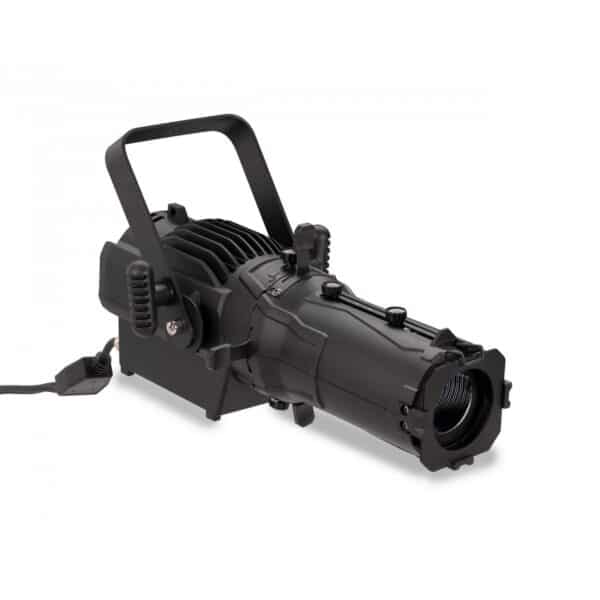

100W Mini Led Profile Spot Light with Zoom, Beam Shaping Shutters & Gobo Slot

Centolight SQUARE 100PZ is a professional LED Profile with adjustable beam from 15° to 30° via manual zoom and focus. It is designed for all those small and medium-sized installations where warm-white light (approx. 3,100K) is required, an adjustable light beam and the possibility of projecting gobos (e.g. shops, Showrooms, showcases, museums, auditoriums, etc.). The light source is a 100W Edison® LED with CRI =90 to allow excellent color rendering, especially in indoor venues. The fixture is very compact and the die-cast aluminum housing increases the heat dissipation. The cooling system uses high precision fans in order to keep noise within 25dB @ 1m. The 4 beam-shaping shutter system allows both radial and angled adjustment of the beam. The profile is equipped with a gobo holder (optional) compartment for glass or metallic gobo, as well as the front color-frame holder (included).

100W Warm White Edison® COB Led with 50,000h lifetime

CRI: WW=90

Radial/Angled Blade-Framing System

Manual Focus

Smooth 16-bit Dimmer

Flicker-Free Operation

Low-Noise Cooling System

Gobo Slot

Color Frame Holder included

Light Source: 1 x 100W Warm White Edison® COB Led

Lamp lifetime: 50,000h

CCT (Color Temperature): 3000±150K

Optic: K9 optic lens

Beam Angle: 15°-30° with Manual Zoom with Degree indications on zoom slot

Focus: Manual

Luminous Flux (15°-30°): 8700-7300lux/2m, 3600-2923lux/3m, 1180-1000lux/5m

CRI: WW=90

Refresh Rate: Over 15.000Hz (Flicker-Free)

Framing System: 4 Blade-Framing System adjustable for radial and angle position

Dimmer: 16-Bit Smooth Linear Dimming

Strobo Effect: 0-20Hz

Cooling System: Quite Fan (under 25dB @1m)

DMX Channel Modes: 2-Channels (RDM Included)

Control Modes: DMX, Strobo, Master-Slave, Manual Dimming

Control Panel: 4 Buttons and LED Display

IP rate: IP20

DMX In/Out: 3-pin XLR

Mains Plug: Euro-Plug

Voltage: 100~240V 50/60Hz

http://images.myfrenex.com/dataweb/J702J/Allegati/MANUALI/[Eng-Ita] SQUARE 100PZ User Manual V1.0.pdf
