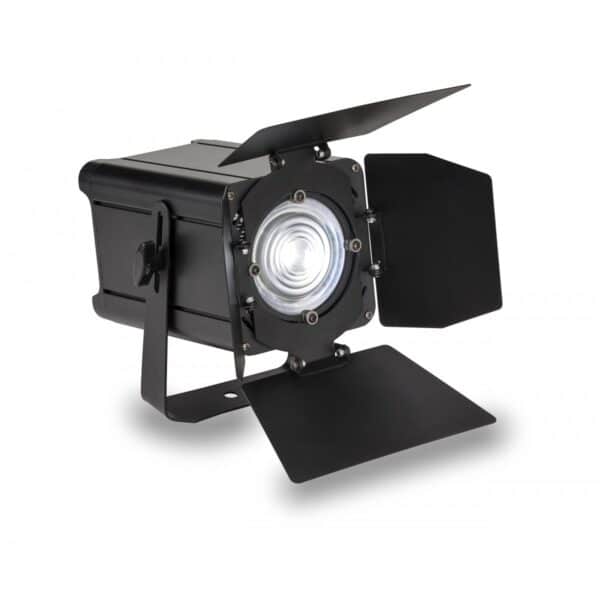

120W Mini Led Fresnel Light with Rotatable Barndoor

Centolight PLOT 120F is a Fresnel spot with 60° beam and 120W warm-white COB Led. It is designed for all those fixed applications where a compact fixture with warm-white light (approx. 3200K) an excellent color rendering is required. The low-noise is based on the high quality of fans and the built-in processor that constantly balances chip temperature and fan speed, always keeping it within 20dB @ 1m distance. The fixture is equipped with rotatable barndoor.

120W Warm-White COB LED with over 50,000h lifetime

Color Temperature: 3200K

Luminous Flux: 1350lux/3m

CRI: Ra=90

Smooth 16-bit Dimmer

Flicker-Free Operation

Low-Noise Cooling System

Rotatable Barndoor Included

Light Source: 1x120W Warm-White COB LED

Chip Life: over 50,000h

CCT (Color Temperature): 3200K

Luminous Flux: 1350lux/3m 483lux/5m

CRI: Ra=90

Beam Angle: 60°

Lens Material: Glass Fresnel Lens

Dimmer: 16-Bit Smooth Linear Dimming

Cooling System: Quiet Fan (under 25dB @1m) + Aluminum Heatsink

DMX Channel Modes: 2 Channels (RDM Included)

Control Modes: DMX, Strobo, Manual Dimming

Control Panel: 4 Buttons and LED Display

IP rate: IP20

DMX In/Out: 3-pin XLR

Power Socket: Powercon In

Voltage:100~240V 50/60Hz

Max Power Consumption: 150W

Working Temperature: -20÷55°C

Barndoor: Rotatable Barndoor (Included)

Max. Fixture Size (WxDxH): 245 x 160 x 120 mm 9.64 x 6.30 x 4.72 in (C-Bracket included)

http://images.myfrenex.com/dataweb/J710J/Allegati/MANUALI/[Eng-Ita] PLOT 120F User Manual V1.2.pdf
