“15”” Bass-Reflef Professional Passive Subwoofer”

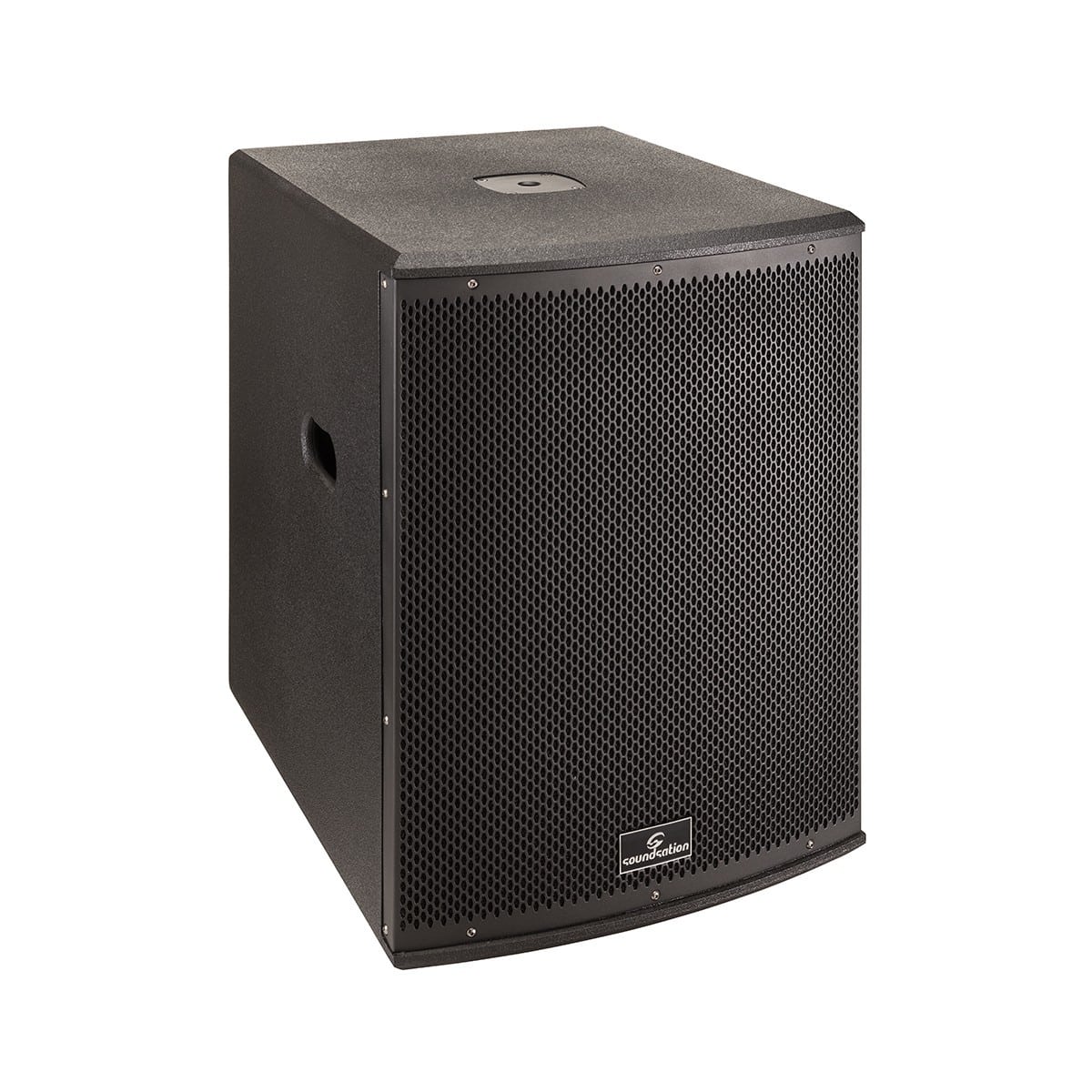

HYPER BASS 15P is a passive subwoofer with bass-reflex, compact, lightweight and very easy to use. It is ideal for both fixed installations and live music events or PA in general. HYPER BASS 15P has a program power of 1200W (2400W peak) with a 15 professional custom woofer. This model has a sturdy, lightweight and elegant plywood housing with metal grille and acoustic foam to protect the transducers inside and give an attractive appearance. It also has 2 recessed handles (1 on each side) and a standard M20 mounting hole to allow any type of installation with SUBEST100-BK or SUBST100-M20 poles.

Anti-scratch powder coating

“15”” csutom woofer with 4″” voice coil”

Power: 600W RMS – 8ohm (1200W Program / 2400W Peak)

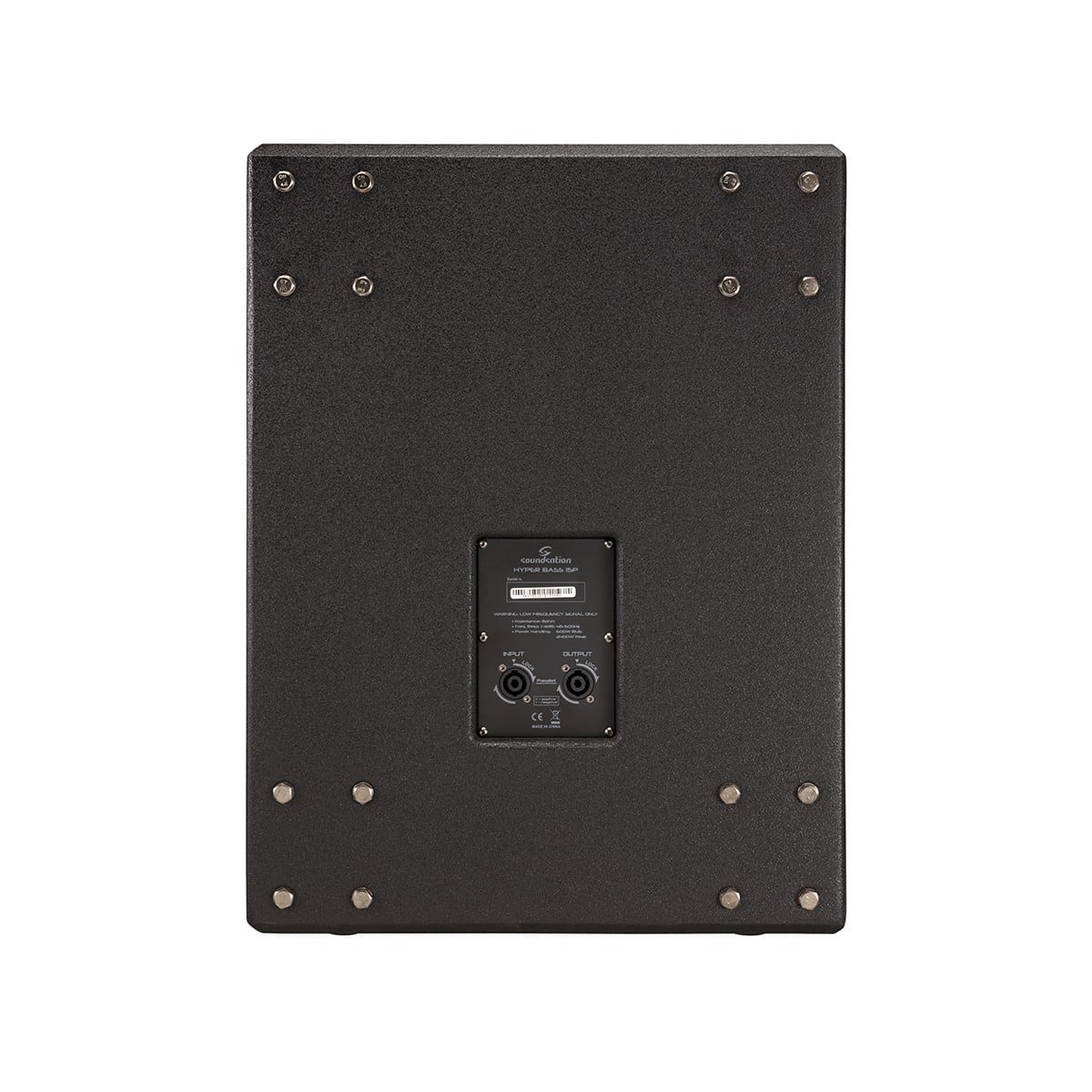

Connection: Spekon Input and Output (+1 Positive, -1)

Recessed handles (1 per side)

Pole mounting with M20 thread

Frequency Resp. (-10 dB): 35Hz – 1KHz

Frequency Resp. (-3 dB): 45Hz – 600Hz

Sensitivity (1W @ 1m): 96dB

MAX SPL: 127dB

RMS Power: 600W

Program/Peak Power: 1200/2400W

Impedance: 8 Ohm

“LF Diameter: 15″””

“LF Voice Coil: 4″””

Input Connectors: 1×2 Poles Speakon connector

Output Connectors: 1×2 Poles Speakon connector

Housing Material: Plywood

Grille Material: Steel

Thickness Grille: 1.5mm

Handles: 2 Recessed handles (1 on each side)

Pole Mount: SUBEST100-BK or SUBST100-M20 (Optional)

Subwoofer Dimensions (WxHxD): 460 x 610 x 565 mm

Packing Dimensions (WxHxD): 545 x 720 x 640 mm

Subwoofer Weight: 32,5 kg

Packing Weight: 37,6 kg
