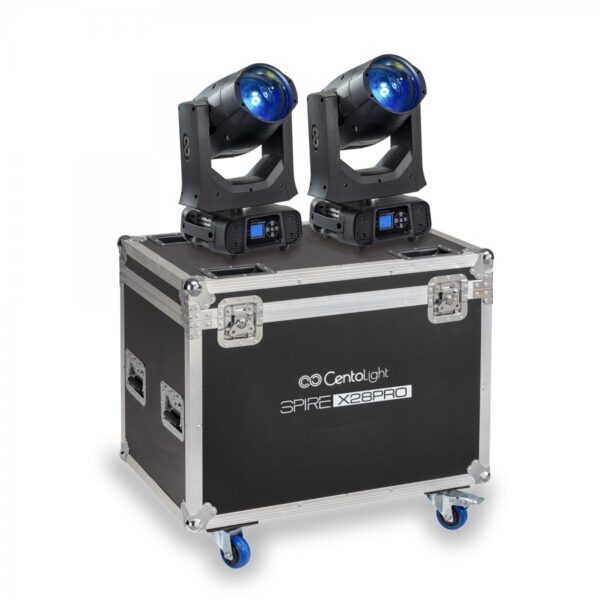

The Spire X28 Pro is a stilish moving head beam in a very compact and lightweight housing. It delivers high light output and even coverage field. It features an High quality 280W Lamp. The lamp equips with the reflector built-in, providing perfect lamp alignment. The moving head features ultra sharp beam effect with low consumption. The fixture is integrated with a full complement of professional characteristics including a static gobo wheel, color wheel, 8 and 16-Facet prism, Prism morphing effect, frost filter, motorized linear focus, variable speed shutter/strobe, linear dimmer, color time and gobo time controllable. and special rotating 8 colour filter The fixture supports DMX, RDM (Remote Device Management). The fixture s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the Spire X28 Pro achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.It s applicable for large scale live concerts, TV productions, road shows, clubs, etc.
2° Beam Angle
Smooth linear mechanical dimming
0-20Hz high speed strobe effect with variable speed
Color wheel with 14 dichroic colors plus open with half colour
Static gobo wheel with 17 gobos plus open
Frost filter system (Hybrid effect for wash)
8 and 16 Facet prism with variable speed and directions
Prism morphing effect
7 colour multiray effect filter
PAN and TILT with 8/16 bit scanning, photoelectric reset and automatic error correction
DMX512 with RDM / Master-Slave / Auto / Sound modes
High Efficient low noise self adjusting fan cooling system
„2.4”” High resolution TFT LCD display with easy user-interface”
Lamp: 280 w Lamp 7800°K Life span2000H Philips MSD Platinum 14R Lamp
Lamp life: 2000 hours
Input voltage: AC100-240V 50/60Hz
Power consumption: 430 W
Control Mode: DMX512, Master/slave, Sound, Auto Mode, RDM
DMX Channel Modes: 16/20 Channel
Beam angle: 2°
Dimmer: Dual flag mechanical dimming system
Focus: High resolution motorized
X/Y Scan: Smooth and precise 16 Bit 540°PAN and 270°TILT
Strobe: 0-20T/sec high speed
„Display: 2.4″” TFT LCD display with 4 control buttons”
Colors: Rotating wheel with 11 colors plus open
Gobos: Static wheel with 17 Gobos plus open
Prism: 8-facet with variable speed and direction
Prism: 16-facet with variable speed and direction
Effect: Prism morphing effect between them
Special Effect: 7 colour multiray effect filter
Frost: Wash filter with hybrid effect
Front lense: Anti-reflection 136mm
http://images.myfrenex.com/dataweb/CTL0014/Allegati/MANUALI/[Eng-Ita] SPIRE X28 pro Manual v1.1_13050.pdf
