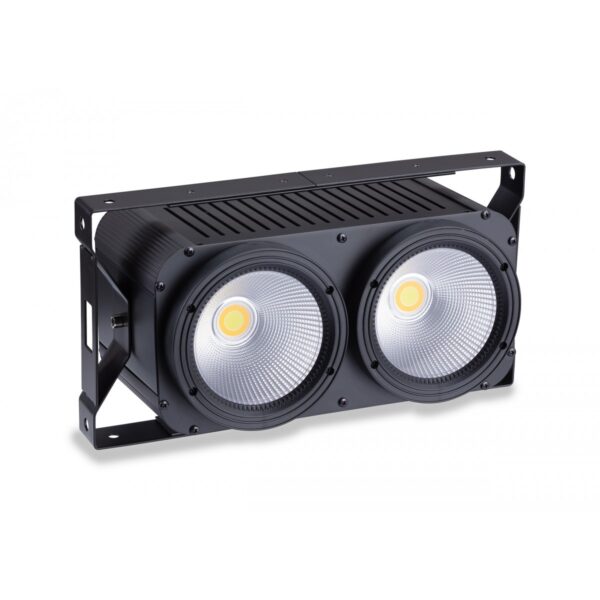

The Lightblaster Blinder series by Centolight combine the traditional advantages of LED technology (energy saving, reliability and durability) with the additional advantages offered by COB (Chip On Board) technology, such as the high amount of Lux, excellent thermal dissipation and the possibility of creating areas with different color temperatures on the same chip. The light source consists of 2 LEDs of 100W each with 2 zones of 50W each, respectively, warm white (about 3200°K) and cool white (about 6500°K). The mix of the two colors (manually adjustable or via DMX) allows you to obtain whites with temperatures chosen according to the place of installation. The 16-bit DMX control is extremely accurate and flicker-free, allowing the use of these blinders even during video shooting. The steel housing is extremely robust and is designed to facilitate heat dissipation. The processor controls the fan speed to minimize fan noise based on the internal temperature.
Color Temperature: 3200-6500K with mixing regulation
Color Temperature ranging from 3000K to 6500K
14580 Lux @1m Luminance
CRI: Ra=80
Advanced Dimmer System
Long Life Span Leds (over 30000 hours)
80° Lens Angle
No flicker, No dithering, No Jitter
Advanced cooling system for fan noise reduction
Light Source: 2x 100W COB Leds
Color System: Warm White / Cold White, mixable
Chip Life: Over 50,000h
CCT: 3000K + 6500K
Luminous Flux: 14580 Lux @ 1m, 1555 Lux @ 3m, 578 Lux @ 5m
CRI: Ra=80
Dimmer Control Frequency: Flicker-Free
Lens Angle: 80°
Strobe: 1-10t/s
Operative Modes: DMX, Master/Slave, Manual, Sound, Auto
DMX512 Modes: 8CH, 4CH
IP Rate: IP22
DMX In/Out: 3-pin XLR
Power Socket: Powercon In/Out
Voltage: 110V ~ 240V, 50-60Hz
Power Consumption: 250W max
Fuse: 5AL 250V (5x20mm)
Working Temperature: -20÷40°C (-4÷104°F)
Housing Material: Steel
Fixture Size: 385 x 175 x 205 mm 15.1 x 6.9 x 8.1 in
