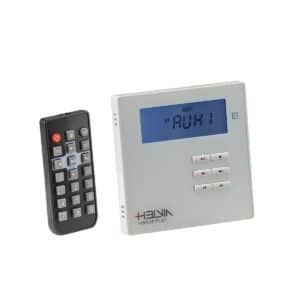

HWA-20 PLAY is a mini in-wall amplifier capable of delivering 2x10W @ 8ohm. The elegant and functional design offers a simple interface thanks to the large LCD display. The Class-D amplification stage with high efficiency, low thermal dissipation and maximum reliability. The multimedia player with USB port, SD-Card, FM Radio, BT, AUX input and remote control, accepts audio files in MP3, WAV, FLAC and other formats, making this amplifier easy to use in any user in hotels, home environments and more.
Stylish Design, User-Friendly Interface with LCD Display and remote control
Built-in 2x10W stereo Class D amplifier
Short-circuit, Overheating, and Overloaded Protection
Multi Player Function with FM Tuner, USB, SD-Card, BT, AUX
Support MP3, WAV, FLAC and other audio formats
Adjustable sensitivity for AUX Input
FM radio with auto or manual channel receiving, and up to 20 user-stored channels
AUX Output for Multiple Unit Linking
Wide Voltage Input from 100 to 240VAC, 50/60Hz
Power input: 100-240Vac
Output power: 2Ã10W @ 8ohm
Total harmonic distortion: =0.03% (1KHz, 1W, 8ohm)
Signal-to-noise ratio: >81dB
Frequency response: 20Hz~20kHz
Aux Input Sensitivity: 1.0V/500mV (adjustable)
Audio format: MP3, WAV, FLAC, etc.
BT Connection: BT2.1+EDR
Storage type: USB, Micro SD-Card
Drive Format: FAT32 (max 32GByte)
Unit Size (WxDxH): 86Ã86Ã38 mm
Packing Size (WxDxH): 143x119x84 mm
Unit Weight: 135g
Packing Weight: 245g
