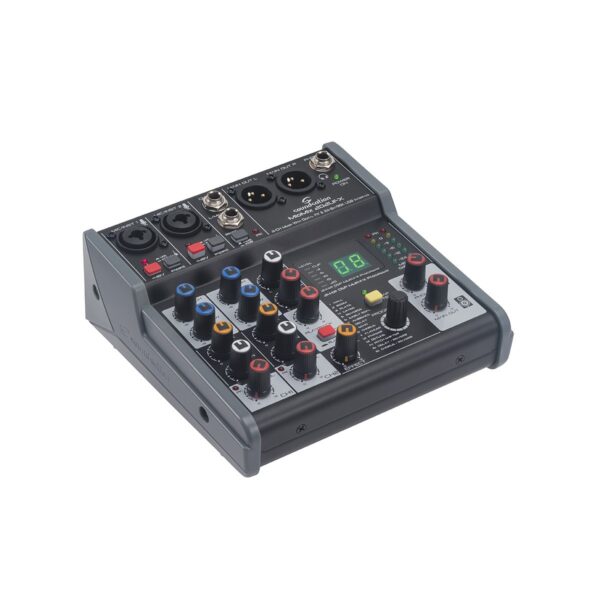

MioMix 202UFX is a 4-channel mixer with digital multi-effect and USB soundcard ideal for small home recording, live gigs and podcasting applications that require professional quality level and maximum portability. Two Mic inputs are equipped with noise-less preamps that accepts all main sound sources, such as condenser microphones – thanks to the +48V Phantom Power, dynamic mics, line and high-impedance inputs (guitars, basses, etc.). A stereo line input allow you to connect keyboards, CD players, DJ consoles, tablets, smartphones, etc. The 24-bit/48kHz digital effect with 16 commonly used presets (Hall/Room/Plate Reverb, Delay, Echo, Chorus, etc.) and TAP-Tempo function let you improve your performance and adjust up to two parameters of each effect. The USB 24-bit/96kHz Stereo In/Out Soundcard lets you connect to a computer and record or play top-quality audio files. An indispensable and reliable tool for all small audio applications.
2 Mic/Line channels with noiseless preamp, combo connector, Hi-Z input for guitars, +48V Phantom Power, Peak Indicator
1 Stereo Line Channel with ¼ Jack inputs, +4/-10dB Pad Adapter and Peak Indicator
2-Band EQ for channels 1 and 2
24-bit/48kHz 16-Preset Digital Effect with TAP-Tempo and up to 2 adjustable Parameters
24-bit/96kHz USB I/O Stereo Soundcard with Playback Level Control
Headphone monitor out with level control
XLR Main Outputs with Master Level Control
Stereo 6-Led VU Meter Bar
Rugged and Lightweight Metal Case for Maximum Flexibility and Portability
240Vac – 5Vdc Power Adapter included
Input Connections: Balanced XLR/Jack Combo (Channel 1-2), Balanced ¼ Jack (Channel 3-4)
Output Connection: Balanced XLR (Main Out L-R), Stereo ¼ Jack (Phones)
USB Connection: Type-B, Female
Channel 1-2 Functions: +48V Phantom Power, Impedance switch (Line/Hi-Z), 2-Band EQ (80Hz/12kHz +/-15dB) Effect Send Level, Pan Position, Channel Volume, Peak Led Indicator
Channel 3-4 Functions: Impedance switch (+4/-10dB), 2-Band EQ (80Hz/12kHz +/-15dB), Effect Send Level, Pan Position, Channel Volume, Peak Led Indicator
USB I/O Soundcard: Up to 24-bit/96kHz Stereo Input/Output Streaming, USB Class-2.0 compliant
Digital Effect: 24-bit Sigma-Delta, 256-times oversampling, 48kHz sampling rate
Level Meter: 2×6 LED Meter
Max Output Level: 3 Vrms
Frequency Response: +/-0.5dB, 20Hz-20kHz
Dynamic Range: 102dB
THD+N @ 1kHz: =0.003%
Stereo Crosstalk: 92dB
Power Requirements: DC 5V, 1A
Power Consumption: Max. 2.5W
Power Adapter: 100-240Vac 0.15A / 5Vcc 1A Max (Power Adapter Included)
Size (WxDxH): 166 x 165 x 66 mm
Packing Size (WxDxH): 288 x 205 x 93 mm
Net Weight: 0.9kg
Gross Weight: 1.2kg
