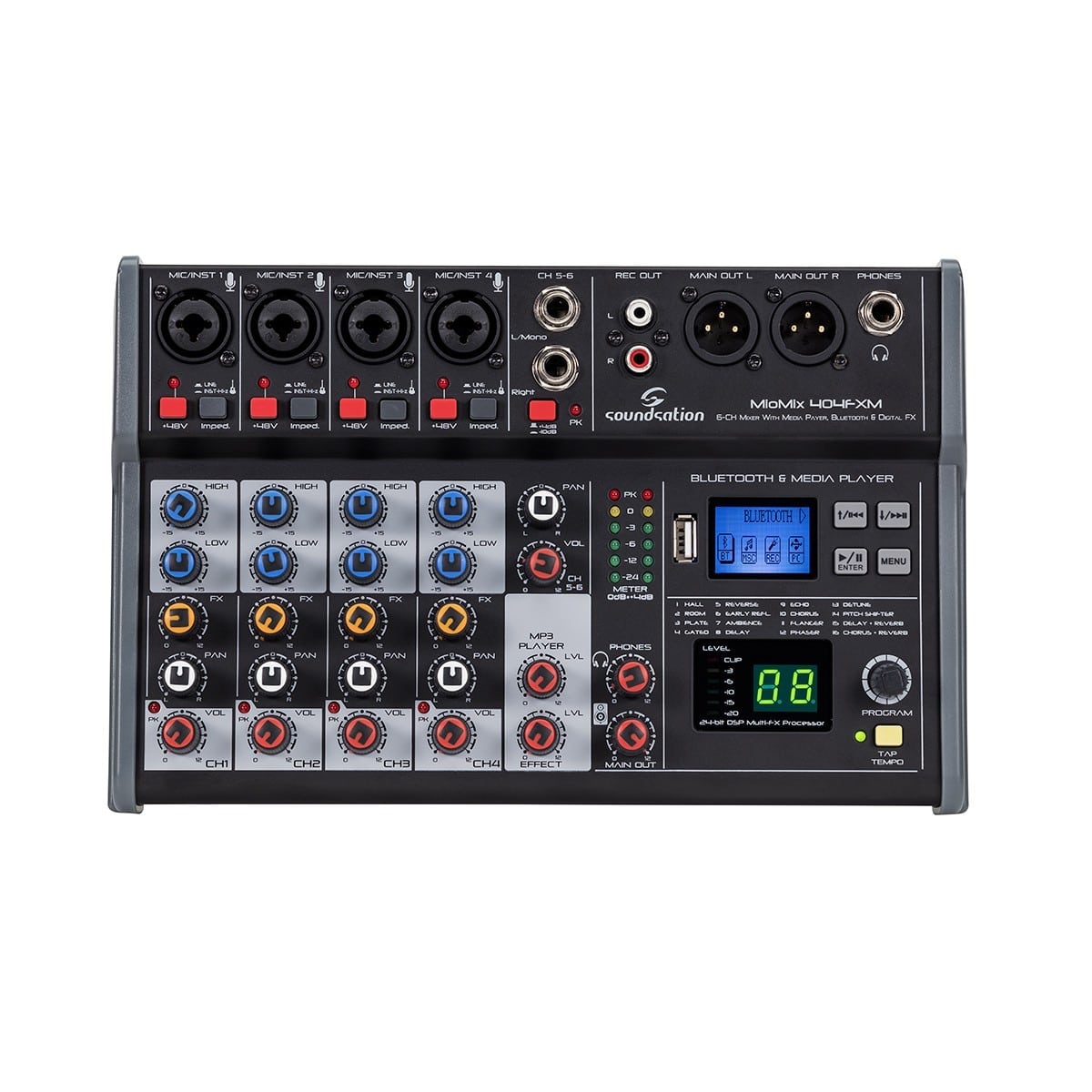

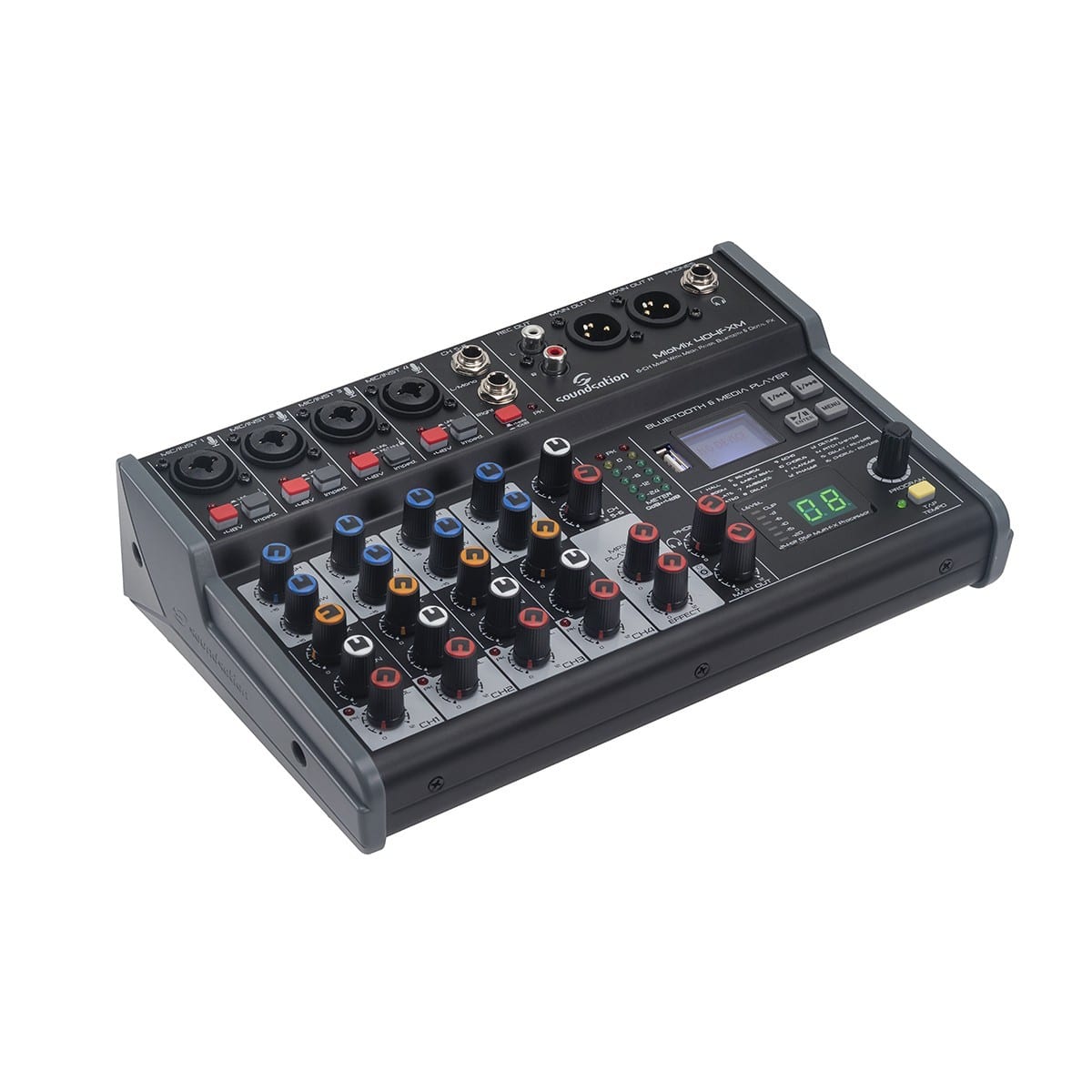

MioMix 404FXM is a 6-channel mixer with USB player and digital multi-effect ideal for small home recording, live gigs and podcasting applications that require professional quality level and maximum portability. 4 Mic inputs are equipped with noise-less preamps that accepts all main sound sources, such as condenser microphones – thanks to the +48V Phantom Power, dynamic mics, line and high-impedance inputs (guitars, basses, etc.). The stereo line input allow you to connect keyboards, CD players, DJ consoles, tablets, smartphones, etc. The USB & BT player accepts WAV, MP3, WMA and FLAC format audio files, as well as wireless audio streaming (BT). It also records your gig in MP3 format (48kHz/16bit @ 128Kbps). The 24-bit/48kHz digital effect with 16 commonly used presets (Hall/Room/Plate Reverb, Delay, Echo, Chorus, etc.) and TAP-Tempo function let you improve your performance and adjust up to two parameters of each effect. An indispensable and reliable tool for all small audio applications.
4 Mic/Line channels with noiseless preamp, combo connector, Hi-Z input for guitars, +48V Phantom Power, Peak Indicator
1 Stereo Line Channel with ¼ Jack inputs, +4/-10dB Pad Adapter and Peak Indicator
USB Media Player and Recorder (WAV, MP3, WMA, FLAC and BT wireless audio streaming)
2-Band EQ for channels 1 to 4
24-bit/48kHz 16-Preset Digital Effect with TAP-Tempo and up to 2 adjustable Parameters
Media Player output level control
Headphone monitor out with level control
XLR Main Outputs with Master Level Control
Stereo 6-Led VU Meter Bar
Rugged and Lightweight Metal Case for Maximum Flexibility and Portability
Input Connections: Balanced XLR/Jack Combo (Channel 1-4), Balanced ¼ Jack (Channel 5-6)
Output Connection: Balanced XLR (Main Out L-R), Stereo ¼ Jack (Phones), Stereo RCA (Rec Out)
Channel 1-4 Functions: +48V Phantom Power, Impedance switch (Line/Hi-Z), 2-Band EQ (80Hz/12kHz +/-15dB), Effect Send Level, Pan Position, Channel Volume, Peak Led Indicator
Channel 5-6 Functions: Impedance switch (+4/-10dB), Pan Position, Channel Volume, Peak Led Indicator
USB Player Buttons: Up/Rewind, Down/Forward, Play/Pause/Enter, Menu
USB Player Functions: BT streaming, Music Player, Audio Recording, EQ-Curve Selection
USB Drive Format: FAT32 format max 64GByte
Player File Formats: WAV, MP3, WMA, FLAC e streaming audio wireless BT
Recorder File Format: MP3 (48kHz/16bit @ 128Kbps)
Digital Effect: 24-bit Sigma-Delta, 256-times oversampling, 48kHz sampling rate
Level Meter: 2×6 LED Meter
Max Output Level: 3 Vrms
Frequency Response: +/-0.5dB, 20Hz-20kHz
Dynamic Range: 102dB
THD+N @ 1kHz: =0.003%
Stereo Crosstalk: 92dB

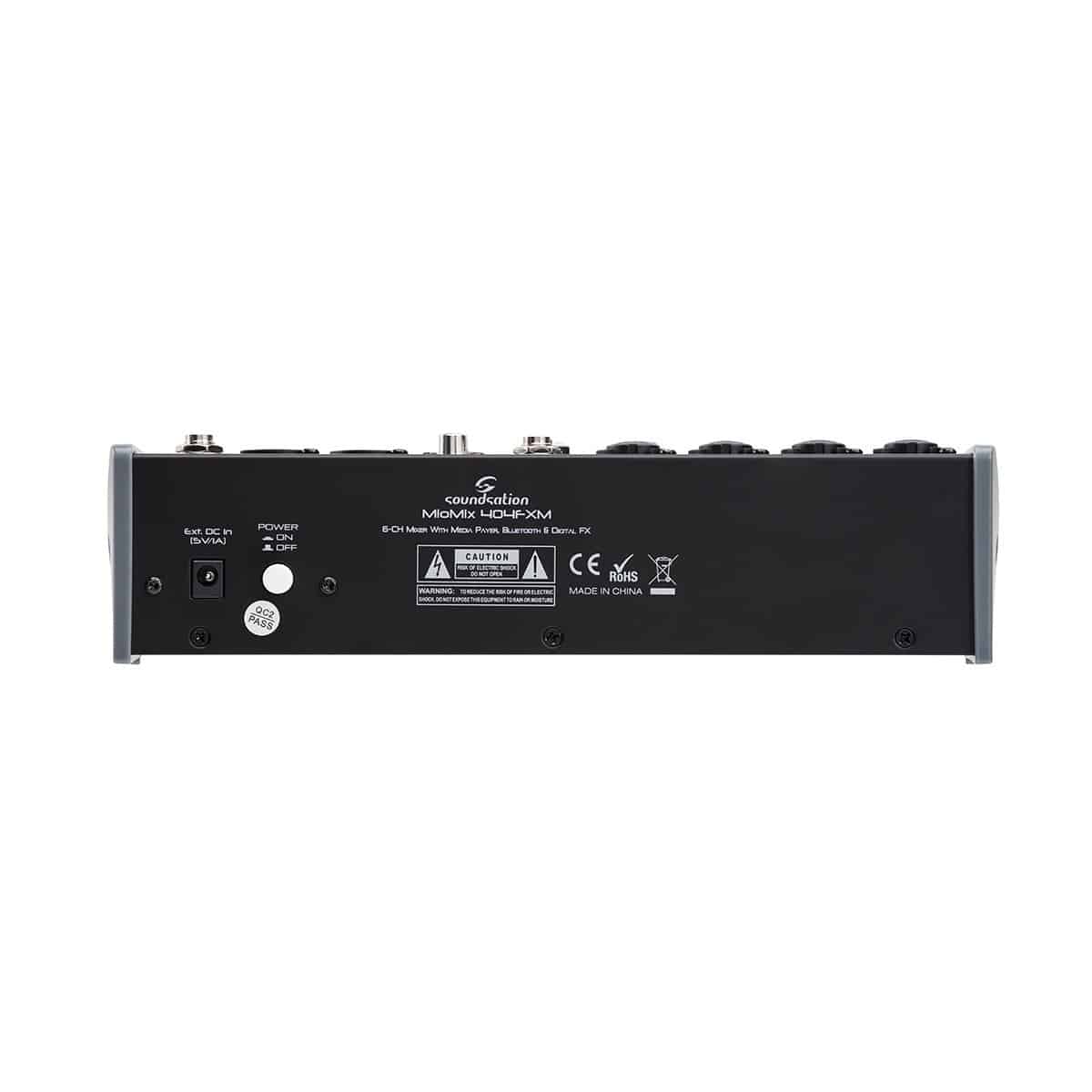

Power Requirements: DC 5V, 1A
Power Consumption: Max. 2.5W
Size (WxDxH): 274 x 165 x 66 mm
Packing Size (WxDxH): 390 x 207 x 87 mm
