Hyper Bass series is the result of years of experience gathered by Soundsation in Portable Sound systems. These active subwoofers are equipped with 12 , 15 or 18 high-excursion woofers. Sturdy and stylish birch plywood enclosures with full metal grille and acoustic foam ,offers a pleasant look and ensure an high quality sound and punch. Equipped with a Class D amp and switching power supply they deliver massive power up to 1200W with great efficiency. All models feature a stereo active crossover and balanced Input/Output/Link connections . All models feature M20 speaker pole mount, 2 or 4 recessed handles (12 or 15-18 ) 4 wheels predisposition on 15 and 18 version for portable sound purposes and easy carriage.
„12”” woofer”
900 Watt class D amplifier
Integrated active crossover
XLR L/R Balanced Line Inputs
XLR L/R Balanced Filtered Outputs, XLR L/R Balanced Link Outputs
Controls: Sub Level, 80-120Hz crossover switch, 0-180° Phase, Shape switch, Ground Lift On-Off
RMS, Overload, Thermal limiter protection
Multiplex Birch plywood enclosure with painted black finish
2 lateral recessed handles
M20 type speaker pole mount to reduce vibrations
Dimensions (LxHxW): 480 x 480 x 560 mm
Weight: 17 Kg

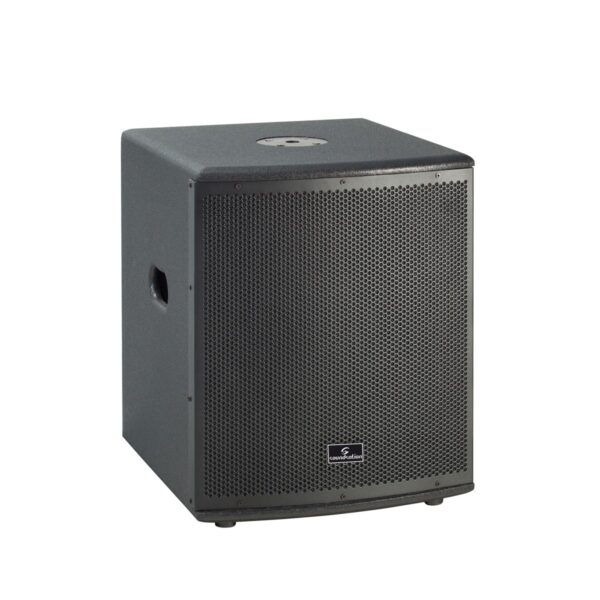

Bass reflex active subwoofer
Woofer: 12 , 3 voice coil
Amplifier: 900W Peak/ 450W RMS, Class-D
Max SPL(Peak): 120dB
Crossover Frequency: 120 Hz (24dB/Oct.)
Frequency Response [- 10dB]: From 40 Hz to 150 Hz
Frequency Response [- 3dB]: From 50 Hz to 120 Hz
LEDs: Power On (Green), Signal (Green) / Limit (Red)
Power Requirement: 230Vac – 50 Hz
Minimum Power Consumption: 500W
Power Connector: VDE with T5AL-250V Fuse
Dimensions (LxHxW): 480 x 480 x 560 mm
Weight: 17 Kg
