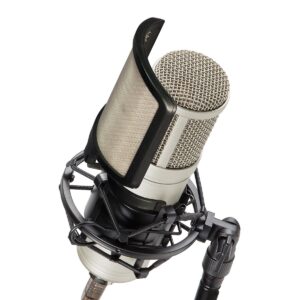

Condenser Studio Microphone with Cardioid Polar Pattern and USB Interface

VoxTaker 100 USB is a plug and play condenser studio recording microphone, without having to install any driver. Like the VoxTaker 100, it is a professional microphone featuring true condenser capsule with cardioid polar pattern. It can be used with confidence in a variety of professional applications, such as recording studios, broadcasting, podcasting, and stage performances just connecting a USB cable. It is compatible with all recording software and ASIO audio drivers. It uses high-performance USB chip technology and high-quality single-point capacitive transducers. That’s why the VoxTaker 100 USB has very low self-noise and high output to reproduce even the subtle sound and fulfil the requirement of high sound quality for broadcasting and recording. The package includes Shock-Mount, Pop Filter and USB cable, all inside a plastic case.

Cardioid Polar Pattern

High Quality FET Preamp

Strong Output Signal without Distortion

High-speed AD/DA conversion technology

44.1/48 kHz Sample Frequency

16 Bit Resolution

USB 2.0 Plug and Play Operation

Maximum compatibility with all Operative Systems without any drivers

Low Power Consumption

High Absorption Shock-mount

Stylish and Innovative Pop Filter

Package includes Plastic Case and USB cable

Element: 16mm high-sensitivity condenser capsule

Cardioid Polar Pattern

Frequency Response: 30Hz -20kHz

Sensitivity: -34dB (0dB = 1V/Pa at 1kHz)

Max Input SPL: 130dB (at 1kHz 1% T.H.D.)

16bit A/D-D/A conversion resolution

Stereo ADC/DAC operation

USB 2.0 transceiver

ADC sampling frequency: 8k, 11.025k, 16k, 22.05k, 32k, 44.1k, 48kHz

ADC THD+N = 0.01%

ADC S/N Ratio = 89dB

ADC Dynamic Range = 89dB

DAC frequency: 32k, 44.1k, 48kHz

DAC THD+N = 0.005%

DAC S/N Ratio = 96dB

DAC Dynamic Range = 93dB

Stereo output power: 400mW

Microphone Size (WxHxD): 188x50x50 mm

Microphone Weight: 252 g

Case Size (WxHxD): 340 x 280 x 90 mm
