Drum & Loop

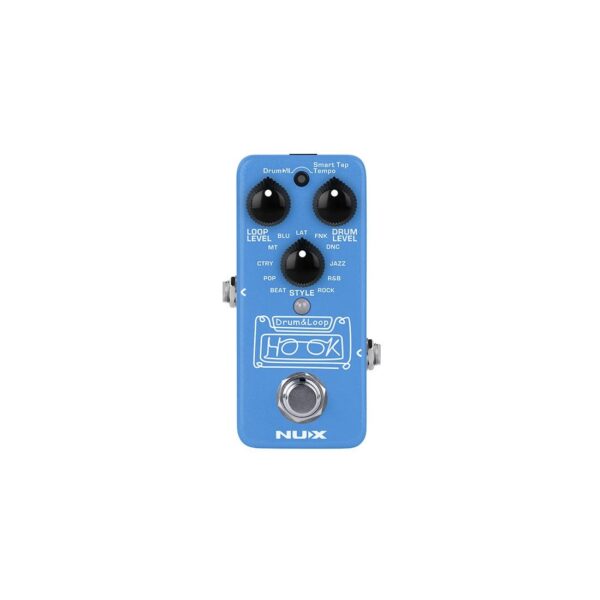

The HOOK Drum & Loop (NDL-3) is a mini looper pedal with auto tempo detection, ?intelligent and simple to operate. Just record a phrase loop, then add a synchronized drum beat. Or you can use the included Smart Tap Tempo and play the drum beat, then start to record the phrase loop. When recording your phrase loop, you can choose Normal Recording or Auto Recording. This is convenient while you put the HOOK on the desk

11 rhythm styles with Smart Tap Tempo

Up to 6 minutes recording, unlimited overdubs

Drum and Loop volumes can be adjusted separately

2 modes: Normal/Auto

True-bypass and analog dry-through

1/8 phones out for silent practice

Low power consumption (less than 100mA)

USB-C port for firmware update, file import/export

• Input Impedance:1MO

Output Impedance:10kO

Phones Output Impedance: 10O

Dynamic Range: 103 dB

DSP Processing: 44.1KHz / 32-bit

A/D D/A Sampling Rate: 48KHz / 24-bit

Power:9V DC(Negative tip, Optional ACD-006 adapter)

Current Draw: less than 100mA

Dimensions:94(L)X51(W)X53(H)mm

Weight:175g

http://images.myfrenex.com/dataweb/NUX0018/Allegati/MANUALI/[ENG]NUX_Hook_user_manual.pdf

http://images.myfrenex.com/dataweb/NUX0018/Allegati/MANUALI/[ITA]-NDL-3 HOOK Drum & Loop_manuale utente.pdf
