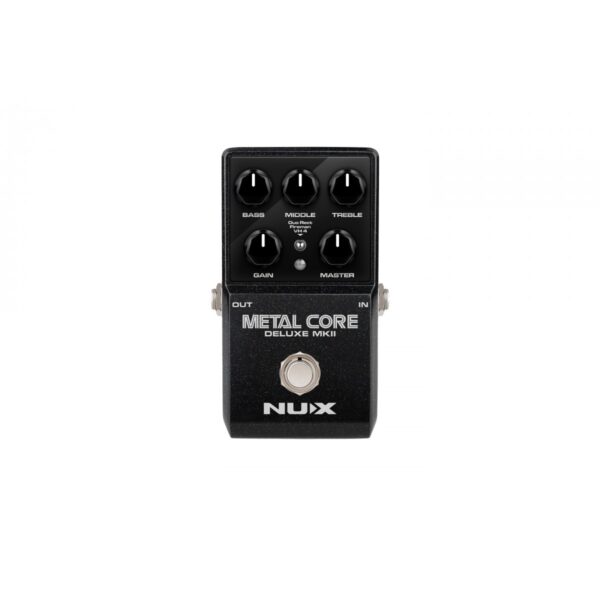

High gain preamp pedal w/ IR out

The NUX METAL CORE DELUXE MKII is a high gain preamp pedal with 3 distinctive high gain amp models including the Duo Rect, Fireman, and VH 4. You can select these models via the 3-way toggle switch, save your presets and use IR out for ampless applications. The NUX METAL CORE DELUXE MKII is a high gain preamp pedal with 3 distinctive high gain amp models including the Duo Rect, Fireman, and VH 4*. You can select these models via the 3-way toggle switch. *All the brand and model names mentioned on this page are Trademarks of their respective owners, which are in no way associated or affiliated with NUX Effects and Cherub Technology CO. LTD.

Duo Rect: Based on Mesa Boogie Dual Rectifier

Fireman: Based on Friedman BE-100

VH4: Based on Diezel VH4

IR out for amp-less application (512 samples resolution)

True-bypass

Parameters auto saving into 3 models

Low power consumption (less than 120mA)

TSAC-HD modeling offers realistic playability and response

• Input Impedance: 1MO

Output Impedance: 1kO

Dynamic Range: 104 dB

DSP Processing: 48KHz / 32-bit

A/D D/A Sampling Rate: 48KHz / 24-bit

Power: 9V DC (Negative tip, Optional ACD-006A adapter)

Current Draw: less than 120mA

Dimensions: 122(L) x 72(W) x 47(H) mm

Weight: 270 g
