Kit Bodypack, Headset, and Lavalier Mic for GO-SOUND AMW Speakers

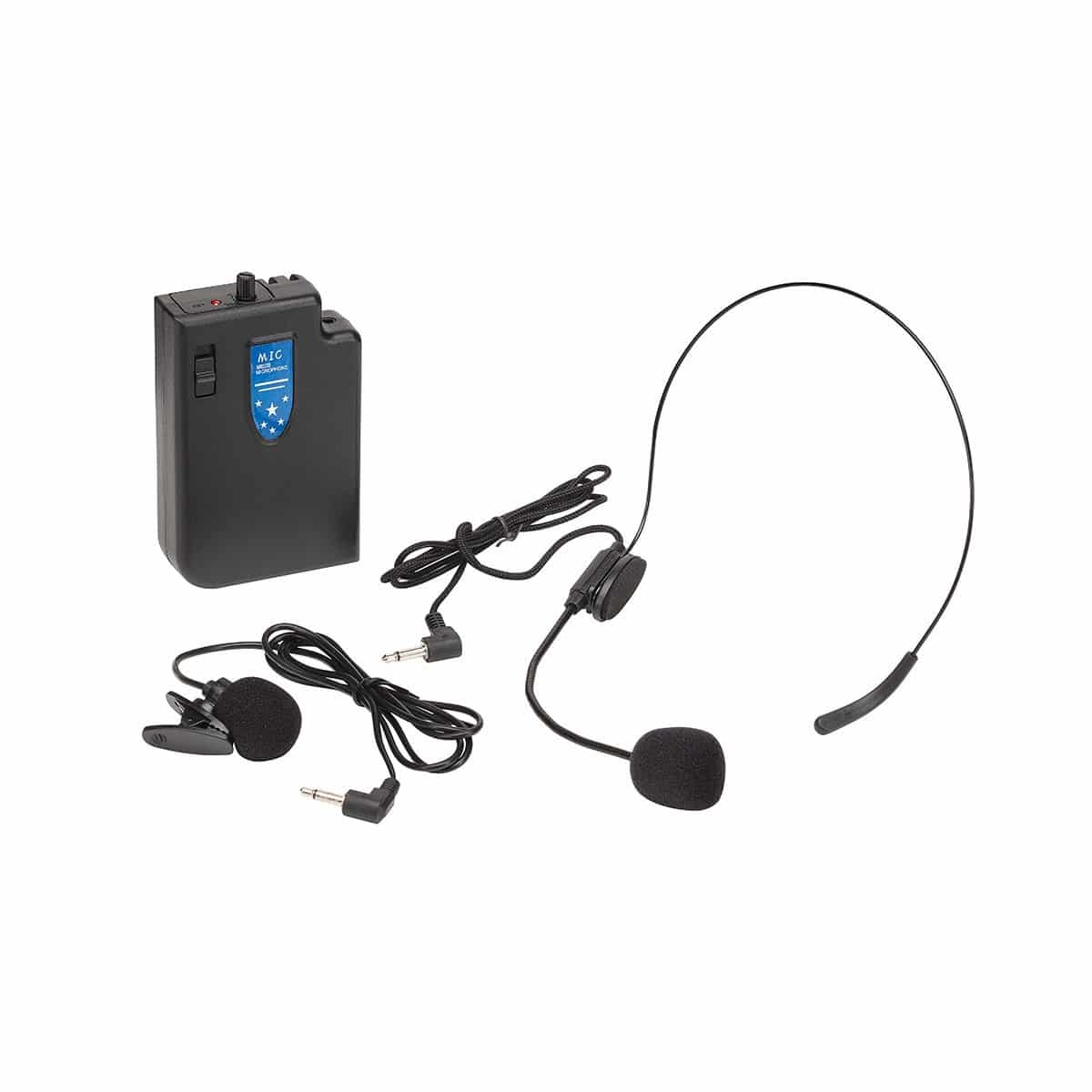

The Go-Sound Pocket Mic is an optional set including a VHF bodypack transmitter, a lavalier microphone, and a headset microphone. It is intended for all of those owners of SOUNDSATION GO-SOUND AMW Active Speakers who need total freedom of movement during their sessions.

VHF Transmission with SMD Technology

175MHz VHF Frequency (NOTE: Before purchasing this product, make sure that the wireless microphone frequency of your Go-Sound 8-10 AMW or at least one of the two frequencies for Go-Sound AMW 12-15 AMW is 175MHz)

Plug and play setup

30m ideal distance (without obstacles)

Simple and lightweight bodypack

Lightweight Headset with cardioid electret capsule

Tie Microphone with clip and omni-directional electret capsule

Carrier Frequency: VHF – 175.00MHz

Transmitter Power: 10mW

Modulation Type: FM

Deviation: 37KHz

Spurious Emission: > 30dB

Continuous Using: 7 hours

Frequency Stabilization: Automatic calibration

Dynamic Range: > 90dB

Total Harmonic Distortion: < 0.5% Frequency Response: 40Hz~15KHz ±3dB "Input Connector: 1/8"" mono Jack (without thread)" Knobs: Mic Volume LED: Red (battery-low) Battery Voltage: 3V (2x1.5V AA Battery) Headset Microphone: Cardioid electret capsule "Headset Connector: 1/8"" Mini-Jack (90° without thread)" Lavalier Microphone: Omni-directional electret capsule "Lavalier Connector: 1/8"" Mini-Jack (without thread)" http://images.myfrenex.com/dataweb/J197J/Allegati/MANUALI/[ENG-ITA]_GO-SOUND_POCKET_MIC_User_Manual_V1.0.pdf
