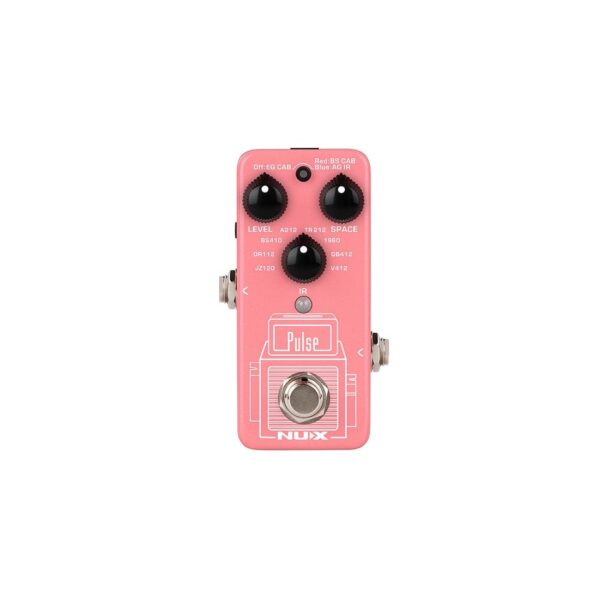

Mini IR loader stompbox

Pulse (NSS-4) is a mini IR-Loader pedal with 3 different modes including Electric guitar CAB, Bass CAB, and Acoustic guitar IR. You can switch the types by tapping the tap switch. Besides that, you can use Pulse as a silent practice tool (1/8 phone jack) in the end of your pedalboard and even as a USB recording interface onto DAW. You can use Pulse edit software to load any 3rd party IRs.

Electric guitar CAB: JZ120, DR112, BS410, A212, TR212, 1960, GB412, V412

Bass CAB: AGL DB810, AMP SV810, MKB 410, TRC 410, AMP SV410, Bassguy 410, Eden 410, AMP SV212

Acoustic guitar IR: G HBird EG Mag, G J15 EG Mag, M D45 EG Mag, G HBird Pie, G J15 Pie, M D45 Pie, M HD28 Pie, T 814 Pie

True-bypass or Buffer-bypass

Low power consumption (less than 100mA)

1024 samples real time calculation

Supports Stereo I/O with TRS Cable

USB Audio Stream, Firmware Update, Phone out

Pulse Editor for 3rd party IR loading, IR tweaking (IR Level, Low Cut, High Cut)

• Input Impedance: 1MO

Output Impedance: 10kO

Dynamic Range: 103 dB

DSP Processing: 48KHz / 32-bit A/D D/A

Sampling Rate: 48KHz / 24-bit

Power: 9V DC (Negative tip, Optional ACD-006A adapter)

Current Draw: less than 100mA

Dimensions: 94(L)X51(W)X53(H)mm

Weight: 175g

http://images.myfrenex.com/dataweb/K127K/Allegati/MANUALI/NUX_Pulse_NSS4_UserManual.pdf

http://images.myfrenex.com/dataweb/K127K/Allegati/MANUALI/[ITA]-NSS-4 Pulse_manuale utente.pdf
