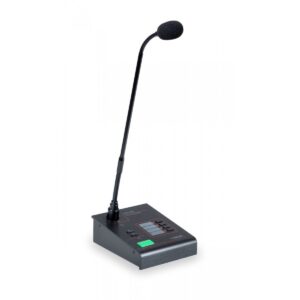

The HMX-MIC is the ideal companion for all paging needs related to the use of the HELVIA HMX-44A matrix mixer. It is a gooseneck microphone with a microphone base powered by the HMX-44A central unit via RJ-45 cable. For lengths over 100m, the base can be connected to an external power supply (included). The control panel allows selection of each of the 4 zones or all 4 simultaneously. The Chime function is programmable, and an additional stereo mini-jack AUX input is available. All levels (microphone, chime and AUX input) are adjustable.
Independent call control on each zone
ALL function for announcements on all zones
Programmable chime with level adjustment
Stereo mini-jack AUX input with level adjustment
RJ-45 connection with power supply
External power supply for distances over 100m
Power Supply: 24Vdc, 500mA from RJ45 or power adaptor (included)
Max. connection length: 100m (CAT5 cable) or 1km with 24Vdc adaptor (included)
Capsule: Back electret condenser
Polar Pattern: Cardioid
Controls: Aux/Mic/Chime levels, chime DIP switches, zone/page buttons
Connectors: RJ45 to amplifier, 24Vdc power jack, Aux input
Frequency Response (-3dB): 150Hz – 22kHz
Input Level Mic: -46dBV, Aux: 50k Ohms
Input Impedance Mic: 600 Ohms, Aux: -10dBV
Output Level: 10dBV
Output Impedance: balanced 600 Ohms
S/N Ratio: -60dB (all channels selected)
Interface: RS-485 control
Zone assign: 4 zones or all selectable
Product Size (WxDxH): 115 x 143 x 460/53 (with Mic/without Mic) mm (4.52 x 5.63 x 18.11/2.09 in)
Product Weight: 600 g. (1.32 lbs.)
Packing Size (WxDxH): 430 x 235 x 65 mm (16.93 x 9.25 x 2.56 in)
Pakcing Weight: 1.06 kg (2.34 lbs.)
