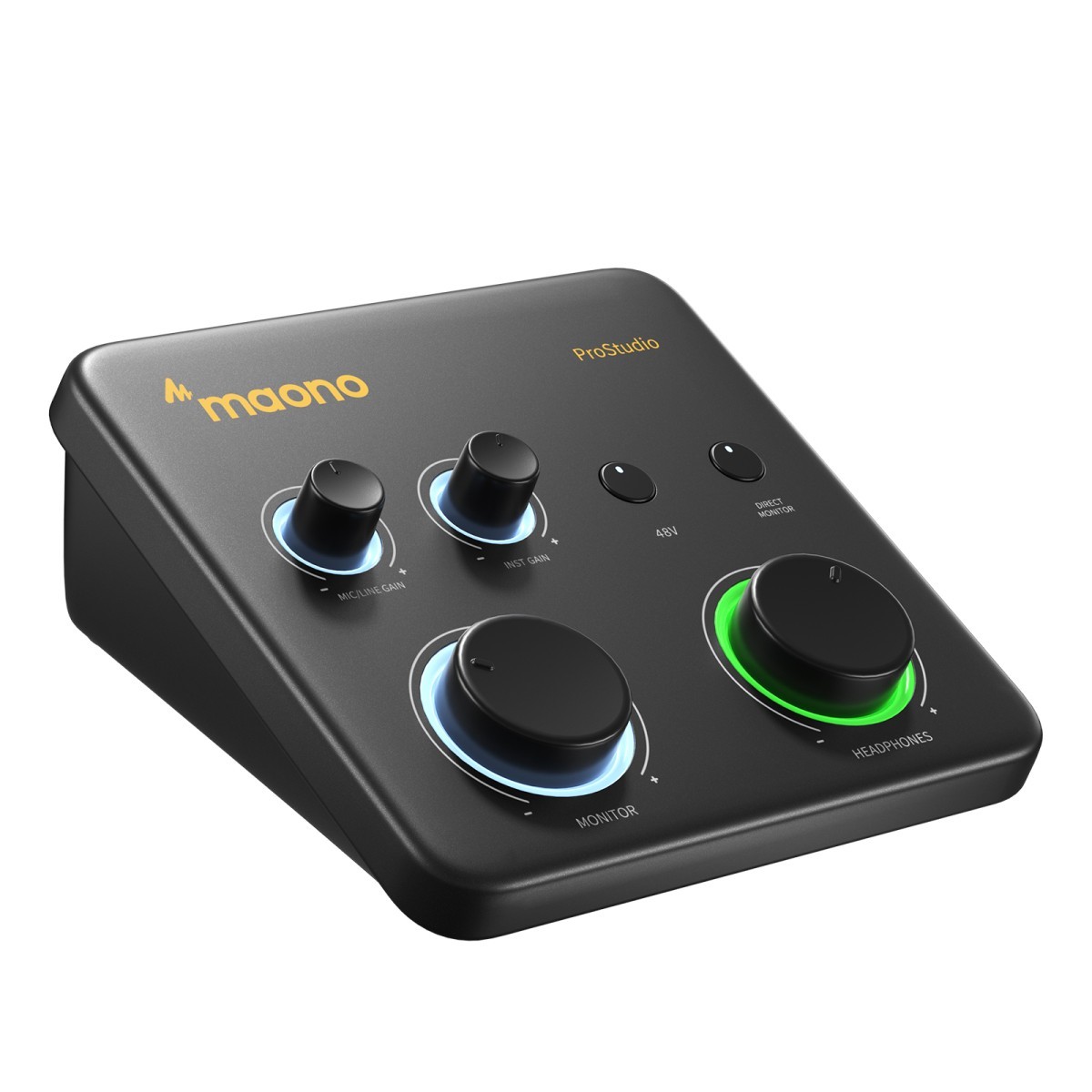

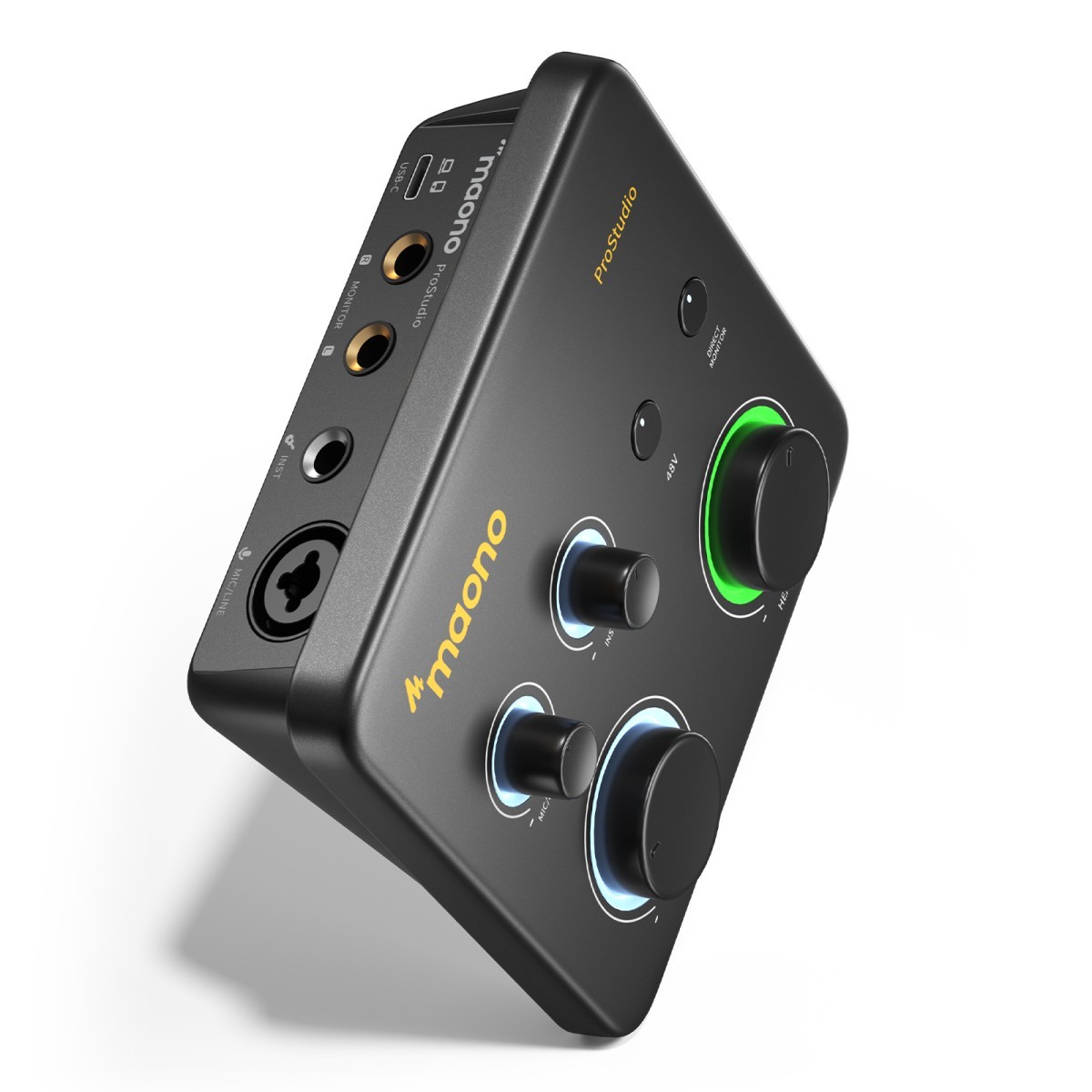

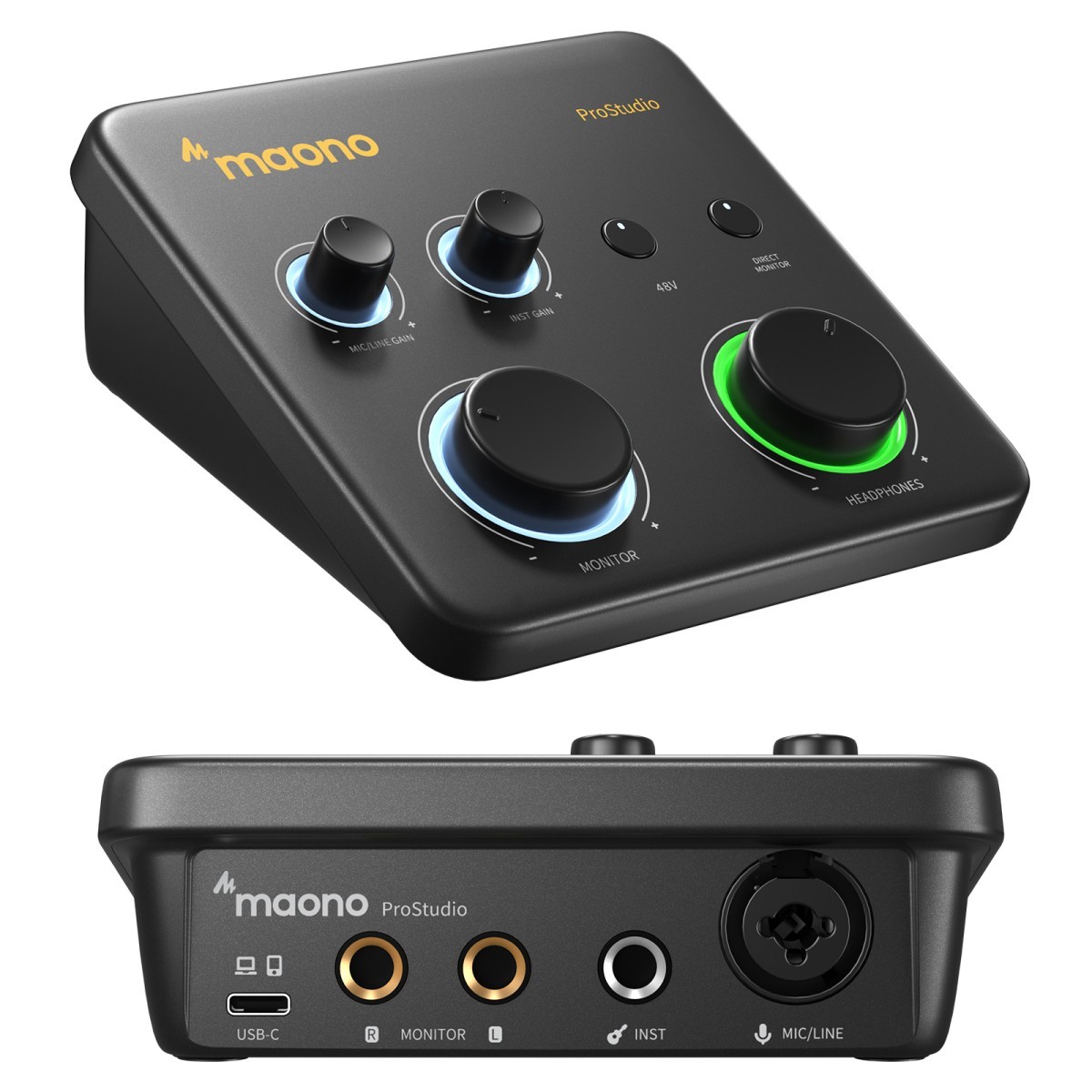

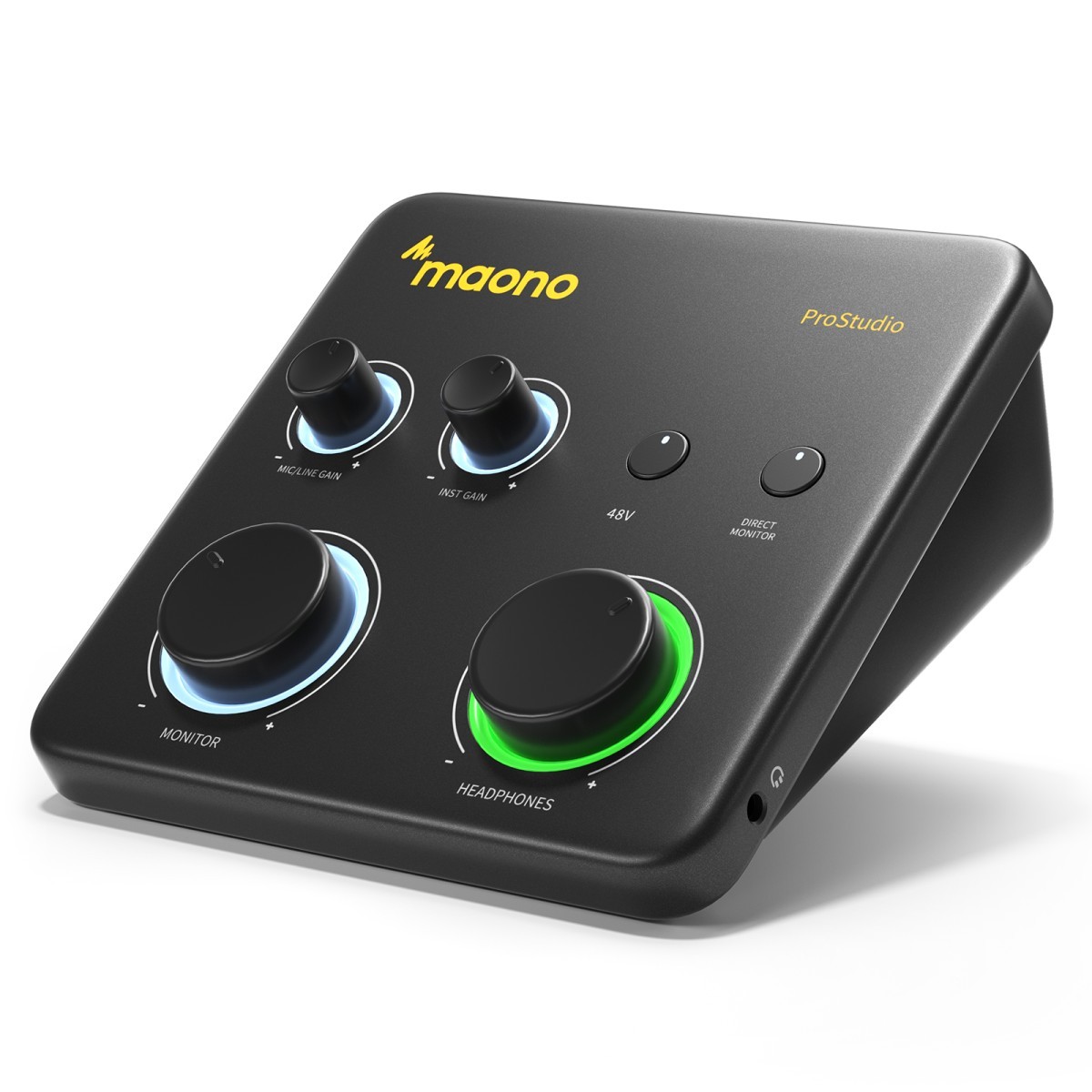

Maono ProStudio PS22 Lite USB Audio Interface

24-bit/192 kHz sample rate

Mic preamps with up to 56dB of gain range

2-in/2-out configuration

ASIO driver

Advanced routing software

Four virtual channels and two loopback channels

Direct Monitoring Switch

USB-C bus powered

Frequency response for mic Inputs: 20Hz~20kHz, ±3dB

Dynamic Range for mic Inputs: 104dB (A-weighted)

THD+N Ratio for mic Inputs: 0,065%

Noise Ein for mic Inputs: -123dB (A-weighted)

Max Input Level for mic Inputs: 8dBu

Gain Range for mic Inputs: -6~+50dB

Impedance for mic Inputs: 2.8KO ±30%

Frequency response for Line Inputs: 20Hz~20kHz, ±3dB

Dynamic Range for Line Inputs: 104dB (A-weighted)

THD+N Ratio for Line Inputs: 0,073%

Max Input Level for Line Inputs: 12dBu

Gain Range for Line Inputs: -10~46dB

Impedance for Line Inputs: 4.3KO ±30%

Frequency Response for Instruments Inputs: 20Hz~20kHz, ±3dB

Dynamic Range for Instruments Inputs: 104dB (A-weighted)

THD+N Ratio for Instruments Inputs: 0,15%

Max Input Level for Instruments Inputs: 12dBu

Gain Range for Instruments Inputs: -10~44dB

Impedance for Intruments Inputs: 100KO ±30%

Frequency response for Main Output: 20Hz~20kHz, ±0.5dB

Dynamic Range for Main Output: 106dB (A-weighted)

THD+N Ratio for Main Output: 0,005%

Max Output Level for Main Output: 6dBu

Impedance for Main Output: 400O ±30%

Frequency Response for Headphones Output: 20Hz~20kHz, ±0.5dB
