Premium Mic Preamps with up 60dB of gain range
24bit/192Khz sampling rate
2-In/2-Out with two combo XLR/TS-TRSt/Line-In Inputs

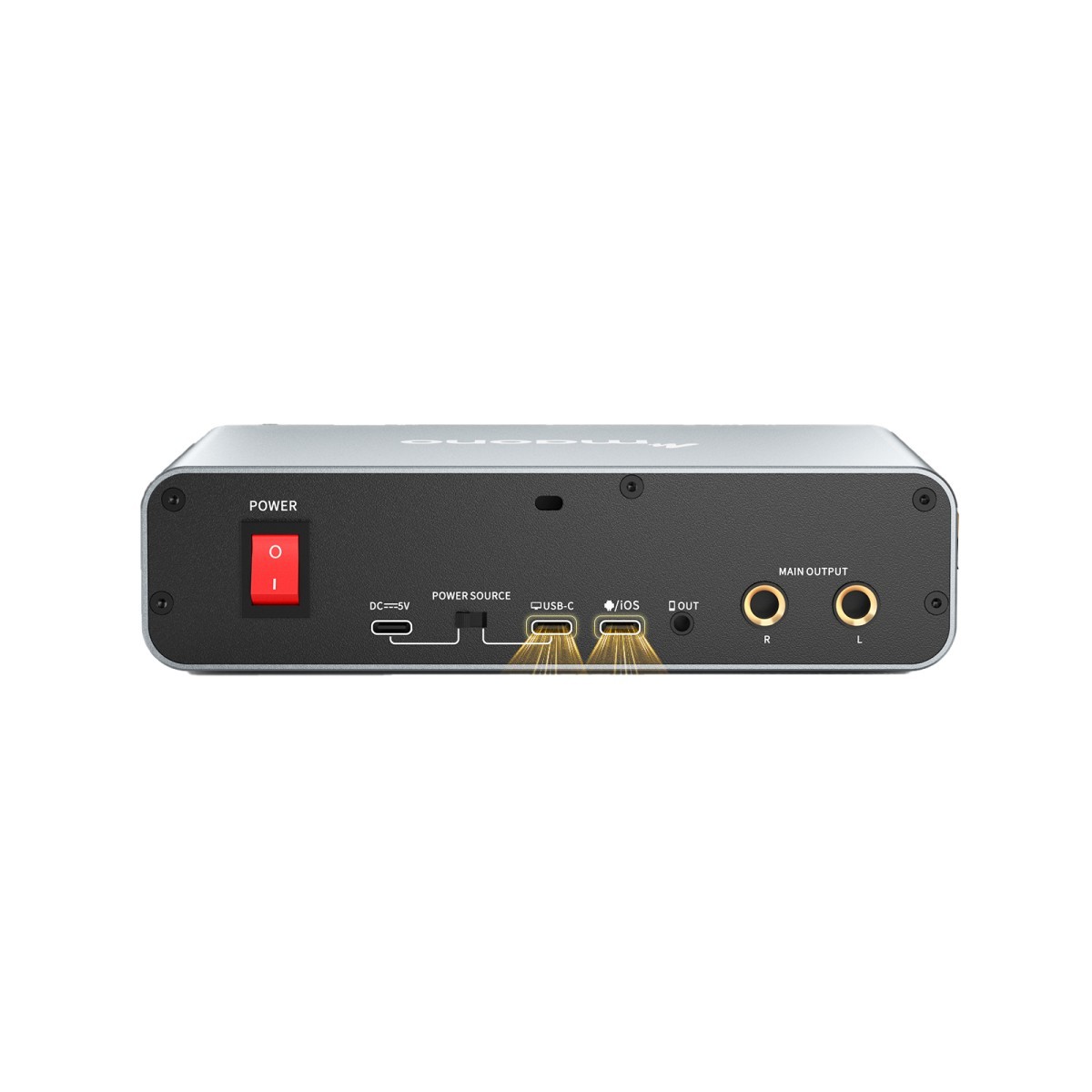

Dual USB-C Connectivity
Pass-Thru charging for select mobile devices
Two virtual In and Two virtual out channels
Phantom Power Switch and LED indicator for Combo XLR Input 1 & 2
Advanced Routing software
Monitor Mix with Mono/Stereo Switch
All Metal Chassis
Main USB-C Sampling Rate: 44,1KHz, 48KHz, 88KHz, 96KHz, 176,4KHz, 192KHz
Secondary USB-C Sampling Rate: 48KHz
Microphone Inputs – Frequency response: 20Hz ~ 20KHz, ±0,25dB
Microphone Inputs – Dynamic Range: 105dB (A-Weighted)
Microphone Inputs – THD+N Ratio: 0,00%
Microphone Inputs – Noise Ein -127dB (A-Weighted)
Microphone Inputs – Max Input Level: -5dBu
Microphone Inputs – Gain Range: 6 ~ +60dB
Microphone Inputs – Impedance: 3,3 KO
Line Inputs – Frequency response: 20Hz ~ 20KHz, ±1dB
Line Inputs – Dynamic Range: 104dB (A-Weighted)
Line Inputs – THD+N Ratio: 0,00%
Line Inputs – Max Input Level: 8dBu
Line Inputs – Gain Range: -6 ~ +48dB
Line Inputs – Impedance: 13,5 KO
TS/TRS Inputs – Frequency response: 20Hz ~ 20KHz, ±2dB
TS/TRS Inputs – Dynamic Range: 102dB (A-Weighted)
TS/TRS Inputs – THD+N Ratio: 0,01%
TS/TRS Inputs – Max Input Level: 0dBu
TS/TRS Inputs – Gain Range: 3 ~ +57dB
TS/TRS Inputs – Impedance: 100 KO
Main Outputs – Frequency response: 20Hz ~ 20KHz, ±0,1dB
Main Outputs – Dynamic Range: 103dB (A-Weighted)
Main Outputs – THD+N Ratio: 0,00%
Main Outputs – Max Output Level: 8dBu
