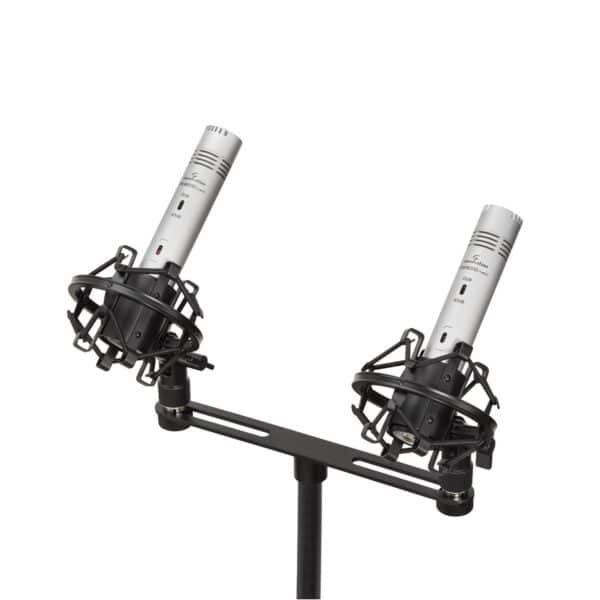

„PCM-8000 MATCH is a set of two condenser microphones with a 16 mm diaphragm, designed for stereophonic miking of acoustic instruments, overall shots for drums, choirs and live performances. The microphones are matched with tolerance within 1dB, and are equipped with 0dB/-10dB gain selector and 100Hz low-cut filter to adapt to all sources and mic preamps (+48V phantom power is required). The kit – contained in a practical plastic case with protective padding, in addition to the two microphones, includes two shock-mounts with screw adapters from 3/8 „”to 5/8″”, distance bar, and two pop-filters. The pressure gradient capsule with cardioid polar pattern is based on a 16mm gold-plated diaphragm. The process of plating with gold vapors deposited on the surface, gives lightness, an excellent electrical capacity and a linear frequency response. The body of the microphone, in lightweight and sturdy metal, contains the JFET preamplifier to maintain a high isolation between input and output stage, and low self-noise.”
16mm High-Quality Pressure Gradient Transducer
Vapor-Deposited Gold Diaphragm
Premium Quality Preamp Circuitry
High Sensitivity and Low Self-Noise
Cardioid Polar pattern
Linear Frequency Response
The Kit Includes 2x Matched Microphones, 2x Shock-Mount Mic Holders, 2 Pop-Filters, and 1 Adjustable Stereo Bar
Element: Pressure Gradient Transducer
Polar Pattern: Uni-directional (Cardioid)
Frequency Response: 30Hz-20kHz
Match Tolerance: Within 1dB (from 100Hz to 10kHz – excluding 1kHz)
Sensitivity: -38dB+/-2dB (0dB=1V/Pa @ 1kHz)
Output impedance: 100ohm +/- 30% @ 1kHz
Self-Noise: 16dB (A-weighted)
Max. input SPL: 130dB (@ 1 kHz = 1% T.H.D)
S/N Ratio: 78dB
Input Attenuation: 0dB/-10dB Selector
Low frequency attenuation: 100Hz 12dB/Octave
Power Requirement: +48V Phantom Power
