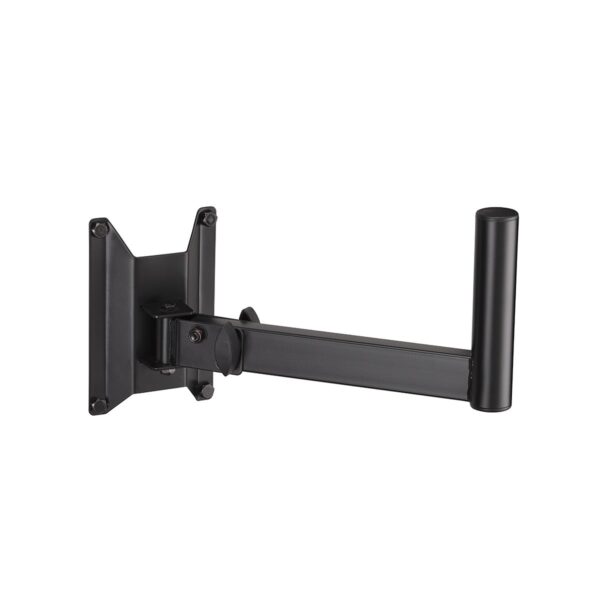

WSS-08 is an essential tool to install speakers in several situations: bars, restourants, school, conference room, etc. Sturdy and stable, it’s built in metal and it comes with 4 wall fixing points in order to guarantee best stability. Speaker can be directed through the horizontal juction, while inclination can be adjusted in 3 different positions.
35mm pole mount
4 wall fixing point with included screws
180° horizontal adjustment for optimal direction
Inclination can be adjusted in 3 different position with safety pin (0°, 19°, 39°)
Load capacity: 50 Kg
Horizontal directivity: 180°
Inclination: from 0° to -29° in 3 positions
Horizontal distance of fixing holes: 104 mm
Vertical distance of fixing holes: 160 mm
Plate dimension (LxH): 120 x 180mm
Total lenght: 300 mm
Pole mount dimensions: (ÃxH): 35 x 120 mm
http://images.myfrenex.com/dataweb/N162N/Allegati/MANUALI/WSS-08_INSTRUCTION_MANUAL.pdf
