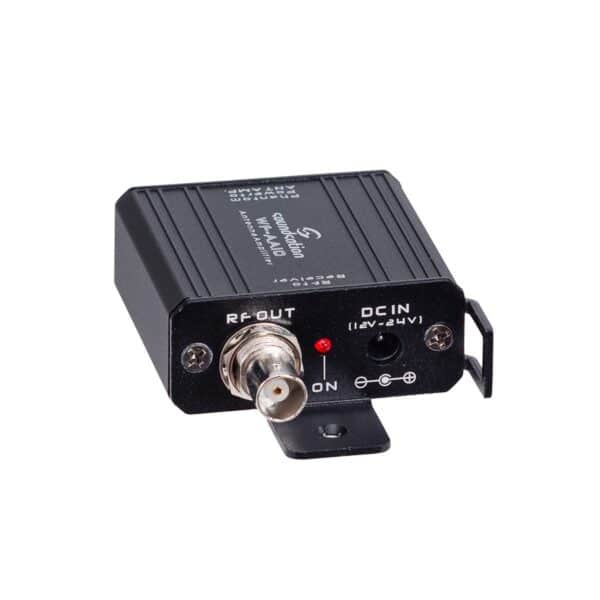

Optimized in the 470 ~ 1000 MHz frequency range, the WF-AA10 offers 12dB (±1 dB) gain to compensate for signal loss due to long antenna cables, thereby enhancing signal stability and increasing reception range. With an external power supply, the WF-AA10 provides power independently to the internal antenna amplifier. This allows complicated external antenna dividing systems to work efficiently and independently so that longer antenna cables can be connected with more amplifiers. Its aluminum casing provides superb heat dissipation characteristics.
External Power Input: 12÷24V DC (Min. 350mA)
Regulated Supply Output: 9V DC (Max. 250mA)
Bandwidth: 470MHz ÷ 1000MHz
IIP3: +18dBm
Gain: +12dB (±1dB)
Noise Index: < 2.5dB Impedance: 50 Ohm Accessories: 1 x AC/DC Adapter, 1 x User manual Dimensions(WxHxD): 93x26x55mm Packing Size(WxHxD): 195x60x150mm Weight: 0.17Kg Packing Weight: 0,25Kg http://images.myfrenex.com/dataweb/E563E/Allegati/MANUALI/[ENG-ITA]_WF-AA10_User_Manual.pdf
