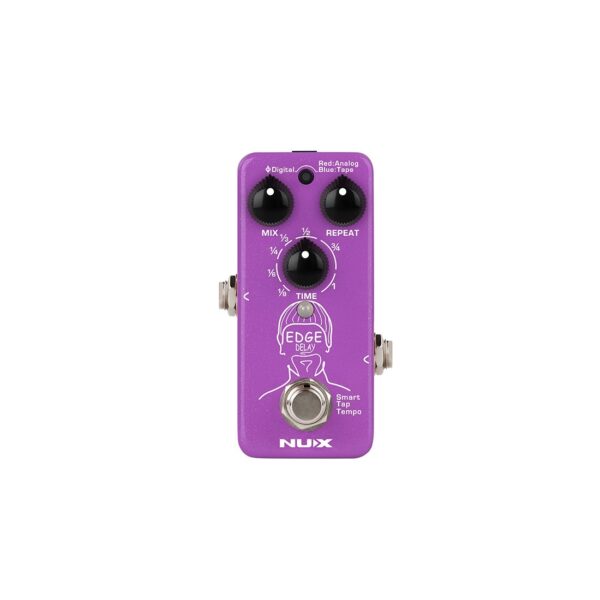

Mini Delay stompbox

The Edge delay (NDD-3) is a mini delay pedal with 3 different delay types including FPhi Digital Delay, Analog Delay, and Tape Echo. You can switch delay types by pressing and holding the footswitch. Just set the Time knob parameter to your desired sub-division, then you can engage the Smart Tap Tempo by pressing the footswitch twice to get a dynamic sub-division tap tempo delay. ?Is really Mini, but Mighty!

Analog Delay: BBD Warm sound with natural treble decay

Tape Echo: High-frequency saturation and low-end decay

Sub-division with Smart Tap Tempo. (Maximum: 1500ms)

True-bypass or Buffer-bypass

Supports Stereo I/O with TRS Cable

Low power consumption (Less than 100mA)

Analog dry signal for low noise and zero latency

USB-C port for firmware updates

• Input Impedance: 1MO

Output Impedance: 10kO

Dynamic Range: 103 dB

DSP Processing: 48KHz / 32-bit A/D D/A

Sampling Rate: 48KHz / 24-bit

Power: 9V DC (Negative tip, Optional ACD-006A adapter)

Current Draw: less than 100mA

Dimensions: 94(L)X51(W)X53(H)mm

Weight: 175g
